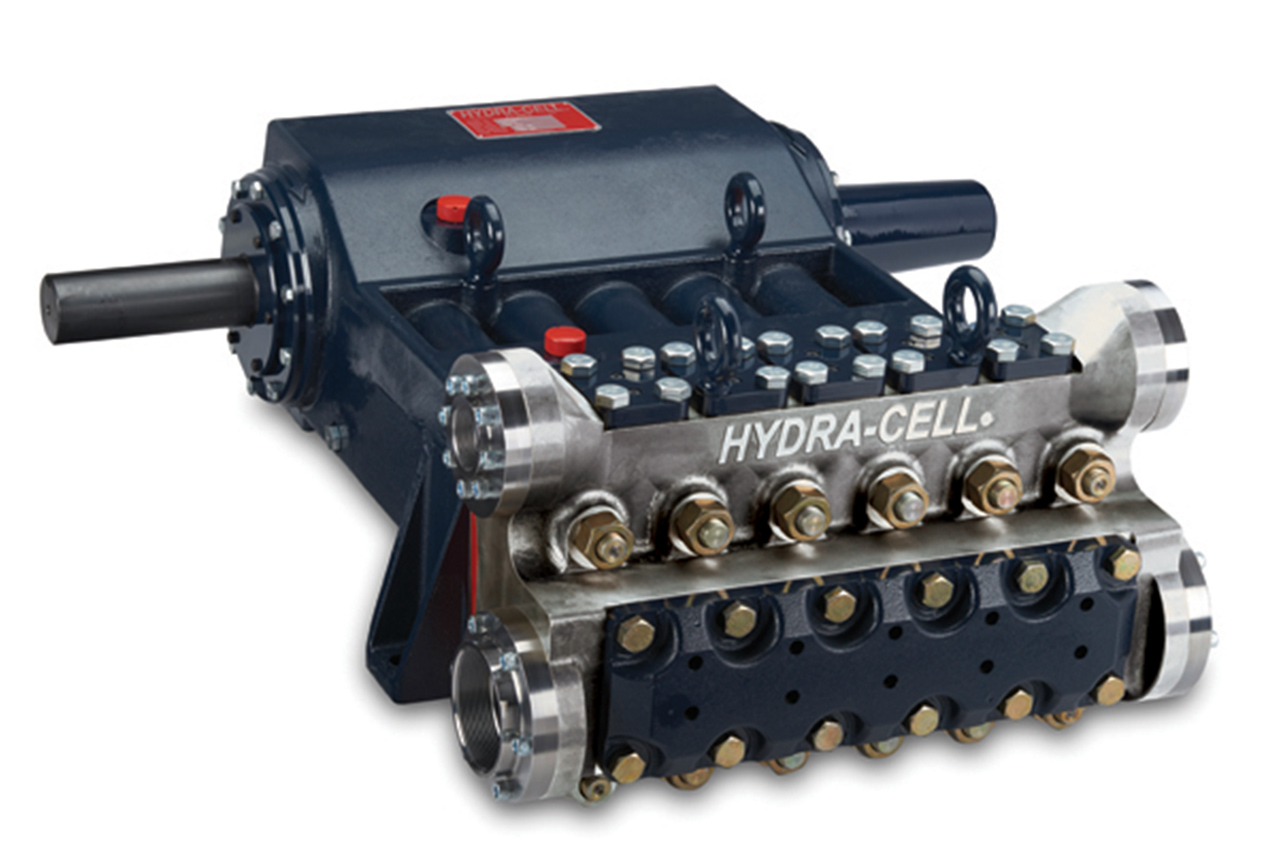

Hydracell Q155
Diaphragm Pump
Type: Positive Displacement Pumps
Designs: Diaphragm / Sealless / Slurry
Manufacturer: Hydra-Cell
Product Description
Designed to handle a wide range of fluids from clear water to thick slurries. Electronic flow control increases accuracy and reliability. Smaller footprint saves valuable space. One pump covers a wide range of flows and pressures – reducing inventory requirements with fast, simple field conversion. Duplexing option doubles capacity and equipment savings. Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range. Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials.
Applications
Bulk Transfer, Chemical, Coating, Filtration Systems, Food Processing, Industrial Process, Industrial Washing, Injection, Pharmaceutical, Printing, Spraying, Viscous Liquids
Flow
To 27.0 gph
Temp Range
Metallic Heads: To 250˚F (121˚C), Non-Metallic Heads: To 140˚F (60˚C)
Max Pressure
To 1500 psi (103 bar) for Metallic Pump Heads, To 350 psi (24 bar) for Non-metallic Pump Heads
Materials of Construction
Brass, PVDF, Polypropylene, 316LSS Hastelloy C Pump Head Materials, Aflas/PTFE, EPDM, FKM, PTFE, Neoprene, and Buna-N Diaphragm and O-Rings materials. View Brochure for full list of materials available.
